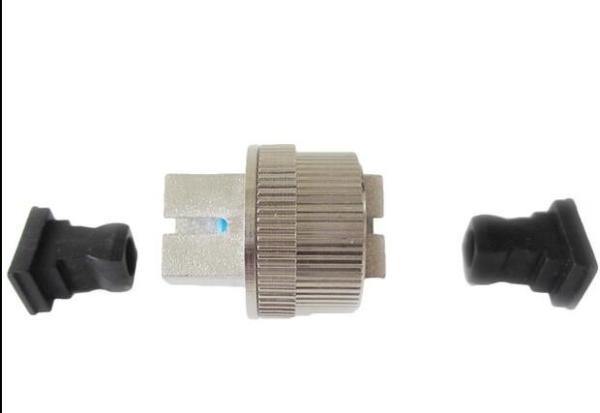

SC UPC APC Adjustable metal attenuator Fiber Optic Attenuator 0 - 30dB For FTTH / FTTX
Specification :
| parameter |
SM(9/125) |
MM(50/125,62.5/125) |
| Attenuation values |
1dB to 20dB(1dB step),25dB,30dB |
1dB to 25dB(1dB step) |
| Wavelength |
1310nm & 1550nm |
850nm &1300nm |
| Attenuation Tolerance (dB) |
1-10dB<±1.0dB ( typical ) standard |
2dB,5dB,10dB<±1.0dB(typical ) standard |
| 11-25dB<±10% ( typical ) standard |
15dB<±10% ( typical ) standard |
| 1-10dB<±0.5dB ( typical ) premium |
2dB,5dB,10dB<±0.5dB(typical ) premium |
| 11-25dB<±5% ( typical ) premium |
15dB<±5% ( typical ) premium |
| Return Loss |
PC |
≥45 dB |
/
|
| UPC |
≥55 dB |
| APC |
≥65 dB |
| Attenuator mode |
Fixed type, male to female type, In-line type, Variable type |
| Operating Temperature |
-40°C~+75°C |
| Storage Temperature |
-40°C~+85°C |
Female Male Fixed Singlemode Multimode 1 3 5 10dB FC SC ST LC MU DIN E2000 Fiber Optic Attenuator sc attenuator
Male to Female SC/APC Singlemode Fixed Fiber Optical Attenuator 5dB 10dB
1dB 3dB 5dB SC Attenuator Male to Female Fixed Fiber Optic Attenuator
SC Adjustable type Fiber Optic Attenuator, 1-30dB
High quality SC UPC attenuator 5db 10dB 30db optical fiber attenuator
SC male to female attenuator Singlemode Fixed Fiber Optical Attenuator 5dB
Feature:
v Good interchangeability and repeatability.
v Environmentally stable.
v Easy installation.
v Custom designed specifications.
v Low return loss.
v Readily panel mountable.
v Compact packing.
v Resistance to high-power light source,
v With light weight, small size, high accuracy, good stability, various forms, convenient characteristic.
